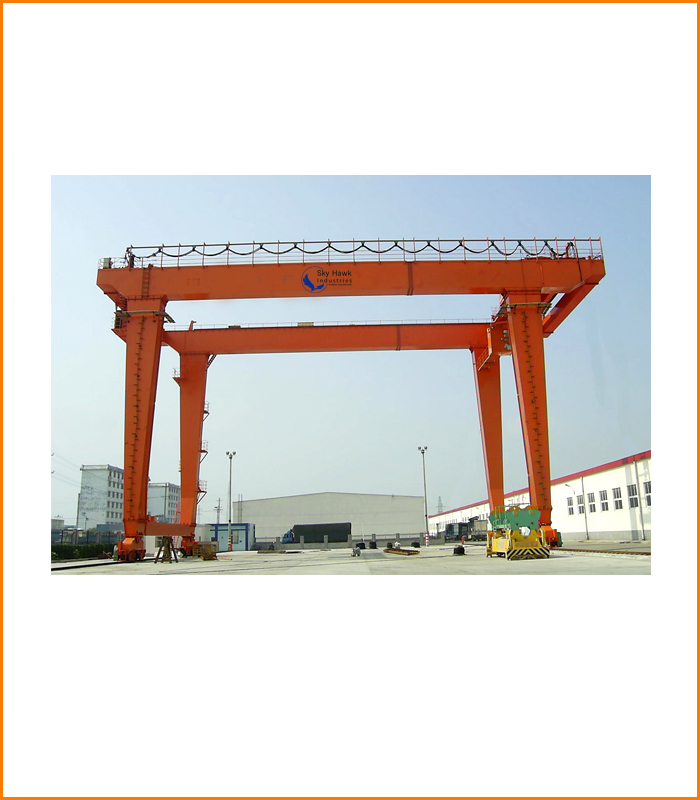

Rail Mounted Gantry Crane (RMGC)

Rail Mounted Gantry Crane (RMGC) Features:

  • Applauded for high performance, energy efficiency and robust structure
  • Highly demanded for lifting heavy weight goods
  • Designed with rail span up to 50 meters and lifting height up to 25 meters
  • Available in both cantilever and non-cantilever option
  • Finished by anti-corrosive paint to protect from rust
  • High hoisting and trolley speed for fast operation
  • RMG Model Designation
  • SILRMGC35

Advantages of Rail Mounted Gantry Crane for Yard Stacking
  • Perfect material handling option for rail terminals as well as for port
  • Can be operated in different yard space areas. It is useful for increasing storage space
  • The utilization of this crane ensures low emission rate and noise level
  • Low maintenance cost
  • Due to its low energy consumption, its operation cost is low
  • Anti-Sway System (Eight Rope Reeving)
Advantages by Design
  • Low spreader setting time
  • Maintains firmness of hoist and trolley position. Moreover its travel direction remains fixed
  • Ensures steadiness of crane
  • It eliminates the necessity of using extra machinery or ropes
  • Prevents head block and lowers unnecessary load caused for using rope or empty container
  • Energy efficient mechanism
  • These electricity operated spreaders require minimal maintenance
  • Raises production rate in comparison with other existing designs
  • Motors and Speed Control System
Motors / Suppliers
  • All drives are specially designed to ensure high rotational speed and high power requirements for increasing its working life
  • All the key parts have been procured from trustworthy European manufacturers
Speed Control System
  • Featured with rigid construction, trouble free functioning and adjustable design, the offered control system has been designed by keeping operational requirements of container cranes in mind.
  • The ”plug-inâ€Â interchangeable design of this electronic item ensures easy accessibility of crane. Moreover, its advanced mechanism helps to reduce its running cost by lowering the necessity of employing competent operator.
Sky Hawk Industires Rail Mounted Gantry Crane
  • The unique design of reeving system prevents oscillation
  • Regenerative operation for reduction of load and working speed that ensure low energy consumption
  • Electricity driven steering
  • Its well built structure is truly useful for automation application purpose. Optional accessories like
  • DGPS auto steering and container positioning system are available with this gantry crane
  • Its travel system is directly controlled by its gearbox
  • Arrangement for different drives for its trolley, hoist and travel sections for eliminating the necessity of side shift on its spreader. This special design is useful for its hassle free operation.
  • Large service network all over India.
  • Wide scope of both in house and on location training
  • Group of highly competent and veteran employees who have required domain knowledge of after sales service
  • The responsibility of employees involve to provide necessary solution for operational, structural, electrical functioning, development and service related problems.
Options
  • Communication point with terminal operating system or TOS
  • Festoon/energy chain system
  • Anti impact system
  • Container pathway and automation of RMG
  • Container fixing arrangement
  • Facility for remote operation
Technical Specification : Typical RMG Model Range
A: Gantry span
B: Lifting Height
C: Cantilever
D: Cantilever
G: Wheel spacing
Wheels per Leg 8
SWL
22– 42m
From 12.5m for 1 over 2
Up to 20m for 1 over 8
0 – 10m
0 – 10m
1 m – 2 m dependant on wheel loads
35ton

Typical Design Parameters
Classification according to F.E.M.
In service wind speed
Out of service wind speed
Ambient temperature range
U7-Q2-A7 (Single lift)
72 km/h (20 m/s)
130 km/h
10oC to + 36oC

Working Speeds
Hoisting with no load
Hoisting with rated load
Trolley travel (with and without load)
Gantry travel without load
Slewing + 190° (optional)
20 m/min
10 m/min
20 m/min
30 m/min
1.2 RPM
