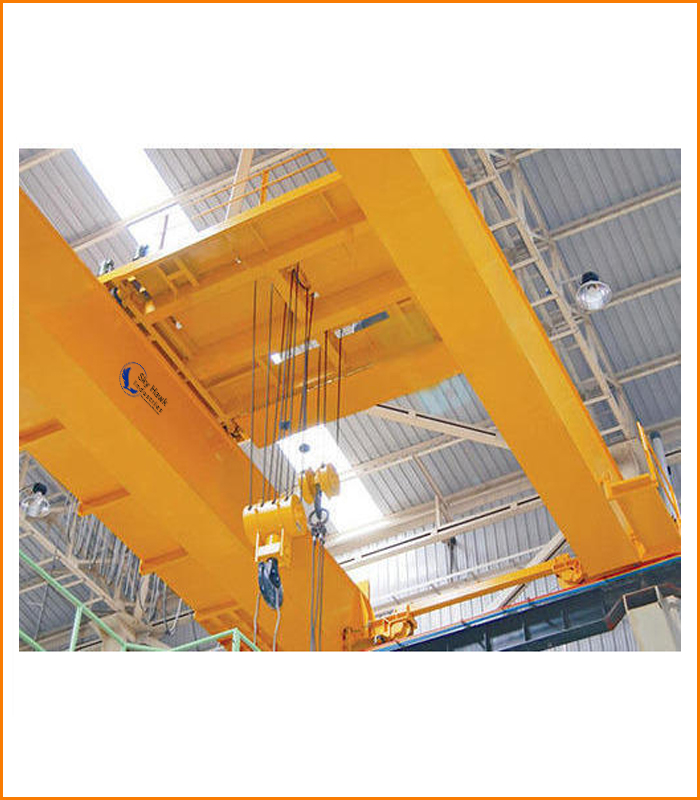

We make Heavy Duty EOT Crane that are designed & manufactured in accordance with IS: 3177 and IS :4137.
Considering adequate factor of safety with respect to appropriate duty.The structural parts of the cranes are designed in Accordance with IS: 807.

Sky Hawk Industires also manufactures cranes as per international standards.
Sky Hawk Industires cranes are manufactured with standard components and controls to ensure reliability.

Standard Features:

• Sky Hawk Industires cranes have high quality structural assembly which ensures acquiescence with ISO 4301
• Sky Hawk Industires cranes have minimum maintenance and emergency interlude
• Easily adjustable limit-switches
• Load tested to 125% and certified by Sky Hawk Industires from tests undertaken in our own workshops

Heavy Duty EOT Crane Technical Specifications:

• Safe Working Load: 500 kgs. to 2,00,000 kgs.
• Span: 5 mtrs to 75 mtrs
• Height of Lift: As per customer specifications
• Class of Duty / Standards: Equivalent to M3,M5, M7, M8 as per IS 3177 / IS 807
• Speeds: Selected depending on client specifications / applications / shed dimensions
• Crane Control: From floor through Pendant Push Buttons, Optionally through Radio Remote Control / cabin with master control
• Drive System: Twin Drive through Squirrel Cage Induction Geared Motors with built-in fail safe brakes
• Motors: Squirrel Cage Induction Hoisting Motors with built-in fail safe brakes for Hoisting, Cross Travel as well as Long Travel. Insulation Class for all motors B/F
• Brakes: Built-in Brakes for Hoisting, Cross Travel and Long Travel motions
• Power Supply System: To Hoist and Cross Travel through Trailing Cables / Drag Chain To Crane through Shrouded Bus Bars / Trailing Cable / MS Angle Iron Conductors / Bare Copper Conductors (depending on customer’s choice and application)
