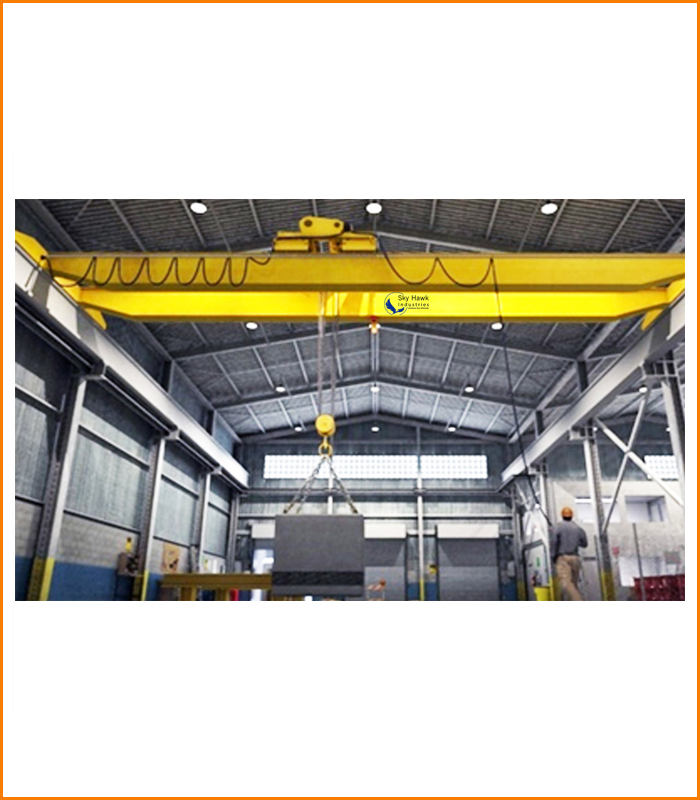

HOT Crane

Product Description

We are a leading manufacturer and exporter of wide range of HOT Cranes. Our range is manufactured using advanced technology and premium quality raw materials sourced from our reliable vendors of the market.

This range is designed and developed in compliance with the industry quality standards. Our HOT Cranes are widely acclaimed in the market for their robust construction, reliable performance, advanced designs, longer service life and high performance.

Furthermore, we are able to fulfil the bulk requirements of our clients within limited time frame

Features:

  • Appreciated for their robust construction with anti-corrosive finish
  • Ideal to lift medium and heavy weight goods with a load capacity up to 50 tonnes
  • Manufactured with one floor mounted rail and one structurally mounted rail
  • Available in both single and double girder with load capacities varying from 12 to 50 tonnes
  • Operated by radio control system or cable connected control pendant
  • Known for trouble free operation and less maintenance

Gantry Crane Technical Specifications:

  • Safe Working Load: 1000 kgs. to 60,000 kgs.
  • Span: 5 mtrs to 50 mtrs.
  • Heights of Lift: As per customer’s specifications.
  • Class of Duty / Standards: Equivalent to M5, M7, M8 as per IS 3177 / IS 807.
  • Speeds: Selected depending on client specifications / applications / shed dimensions.
  • Crane Control: From floor through pendant push buttons, optionally through radio remote control / cabin with master control.
  • Drive System: Twin drive through squirrel cage induction geared motors with built-in fail safe brakes.
  • Motors: Squirrel cage induction hoisting motors with built-in fail safe brakes for hoisting, cross travel as well as long travel. Insulation class for all motors B/F.
  • Brakes: Built-in brakes for hoisting, cross travel and long travel motions.
  • Power Supply System: To hoist and cross travel through trailing cables / drag chain to crane through shrouded bus bars / trailing cable / MS angle iron conductors / bare copper conductors / cable reeling drum (depending on customer’s choice and application).
