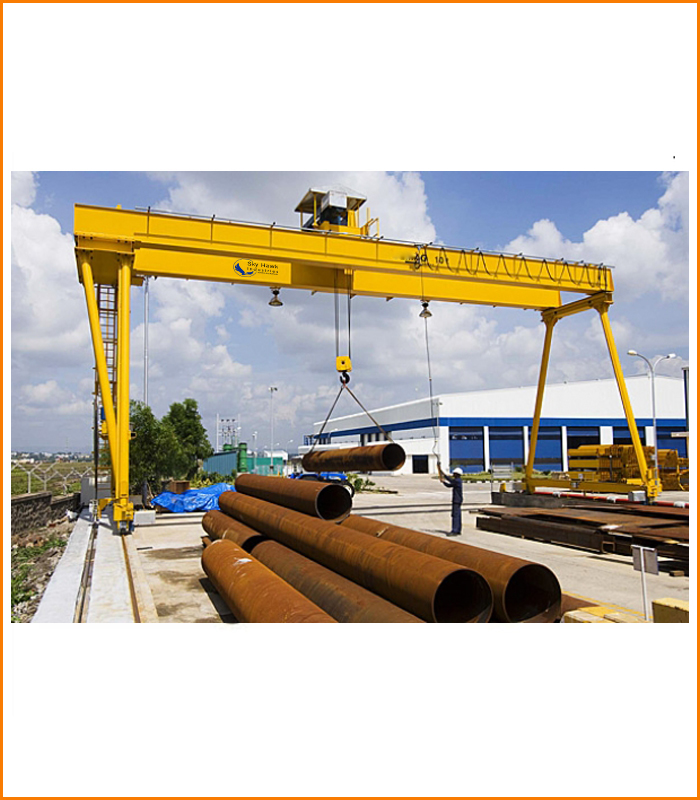

We are the prominent manufacturer, exporter and supplier of superior quality Industrial Gantry Cranes that are used for handling material equipment in various industries.

These are manufactured using optimum quality components and sophisticated technology as per the set industry norms. Offered cranes are available in various capacities to meet the diverse needs of the clients.

Clients can avail these this productfrom us at market leading prices.

Features:

• Perfect finish protects from corrosion
• Available in both cantilever and non-cantilever option
• Ideal to lift medium and heavy weight goods with load capacity up to 100 tonnes
• Applauded for high performance, energy efficiency and robust structure
• Less maintenance means long working life and hassle free operation
• Wide span over the area for fast material handling

Gantry Crane Technical Specifications:

• Safe Working Load: 1000 kgs. to 60,000 kgs.
• Span: 5 mtrs to 50 mtrs.
• Heights of Lift: As per customer’s specifications.
• Class of Duty / Standards: Equivalent to M5, M7, M8 as per IS 3177 / IS 807.
• Speeds: Selected depending on client specifications / applications / shed dimensions.
• Crane Control: From floor through pendant push buttons, optionally through radio remote control / cabin with master control.
• Drive System: Twin drive through squirrel cage induction geared motors with built-in fail safe brakes.
• Motors: Squirrel cage induction hoisting motors with built-in fail safe brakes for hoisting, cross travel as well as long travel. Insulation class for all motors B/F.
• Brakes: Built-in brakes for hoisting, cross travel and long travel motions.
• Power Supply System: To hoist and cross travel through trailing cables / drag chain to crane through shrouded bus bars / trailing cable / MS angle iron conductors / bare copper conductors / cable reeling drum (depending on customer’s choice and application).
