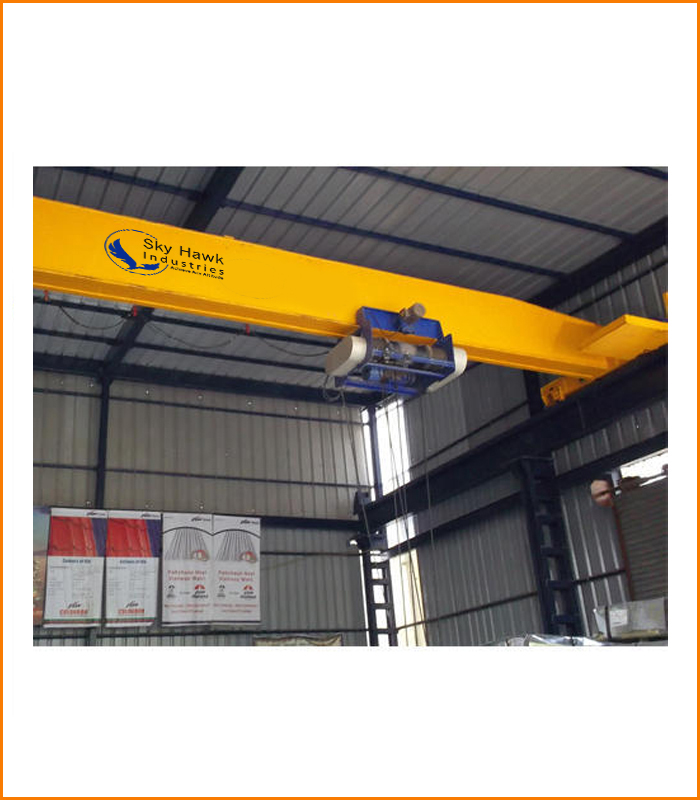

Our offered Flame Proof EOT Cranes are widely used for the applications that are highly exposed to the explosive gases. Each part of the system is sturdily engineered to deliver time-tested performance. As the name implies, the mentioned crane is flame proof, meaning the crane can withstand working conditions that involve flames. Its modular design, reliable operations and ducted wiring make this an ideal choice for the automobile and other engineering applications.

We make Flame Proof EOT Crane that are designed & manufactured in accordance with IS: 3177 and IS :4137.Considering adequate factor of safety with respect to appropriate duty.The structural parts of the cranes are designed in Accordance with IS: 807. Sky Hawk Industires also manufactures cranes as per international standards. Sky Hawk Industires cranes are manufactured with standard components and controls to ensure reliability.

Flame Proof EOT Crane Features:

• Sky Hawk Industires cranes have high quality structural assembly which ensures acquiescence with ISO 4301
• Sky Hawk Industires cranes have minimum maintenance and emergency interlude
• Easily adjustable limit-switches
• Load tested to 125% and certified by Sky Hawk Industires from tests undertaken in our own workshops

Flame Proof EOT Crane Specifications:

• Safe Working Load: 500 kgs. to 2,00,000 kgs.
• Span: 5 mtrs to 75 mtrs
• Height of Lift: As per customer specifications
• Class of Duty / Standards: Equivalent to M3,M5, M7, M8 as per IS 3177 / IS 807
• Speeds: Selected depending on client specifications / applications / shed dimensions
• Crane Control: From floor through Pendant Push Buttons, Optionally through Radio Remote Control / cabin with master control
• Drive System: Twin Drive through Squirrel Cage Induction Geared Motors with built-in fail safe brakes
• Motors: Squirrel Cage Induction Hoisting Motors with built-in fail safe brakes for Hoisting, Cross Travel as well as Long Travel. Insulation Class for all motors B/F
• Brakes: Built-in Brakes for Hoisting, Cross Travel and Long Travel motions
• Power Supply System: To Hoist and Cross Travel through Trailing Cables / Drag Chain To Crane through Shrouded Bus Bars / Trailing Cable / MS Angle Iron Conductors / Bare Copper Conductors (depending on customer’s choice and application)
